Install And Configure Nagios on Ubuntu 14.04 LTS

Nagios is an open source software that can be used for network and infrastructure monitoring. Nagios will monitor servers, switches, applications and services. It alerts the System Administrator when something goes wrong and also alerts back when the issues has been rectified.

Using Nagios, you can:

• Monitor your entire IT infrastructure.

• Identify problems before they occur.

• Know immediately when problems arise.

• Share availability data with stakeholders.E: Failed to fetch http://security.ubuntu.com/ubuntu/pool/main/p/php5/php5-curl_5.5.9+dfsg-1ubuntu4.3_amd64.deb  404  Not Found [IP: 91.189.92.201 80]

• Detect security breaches.

• Plan and budget for IT upgrades.

• Reduce downtime and business losses.

Scenario

In this tutorial i am going to use two systems as mentioned below.

Nagios server:

Operating system : Ubuntu 14.04 LTS Server
IP Address    : 10.2.1.31

Nagios client:

Operating System : Ubuntu 14.04 Desktop
IP Address    : 10.2.1.30

Prerequisites

Make sure your server have installed with fully working LAMP stack. If not, follow the below link to install LAMP server On Ubuntu 14.04 and earlier versions.

• Install LAMP Server On Ubuntu 14.04

Install Nagios

Install nagios and nagios plugin using the following command:

sudo apt-get install nagios3 nagios-nrpe-plugin

During installation, you’ll have to answer some simple questions. First, you’ll be asked to configure your mail server to get alerts from your nagios server.

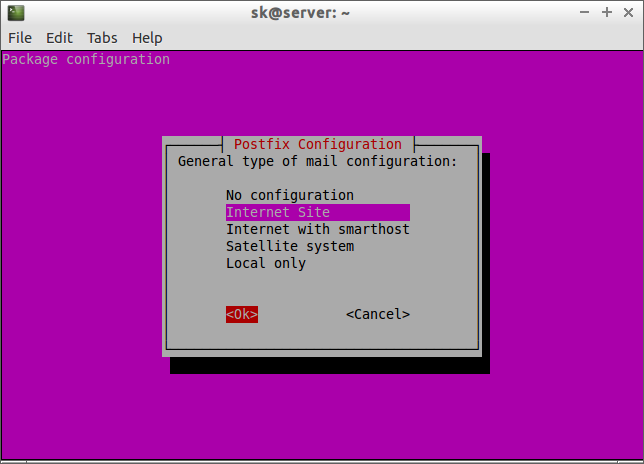

Select the type of mail configuration:

Enter the system mail name. It will be automatically selected by the installer. If not, enter it manually.

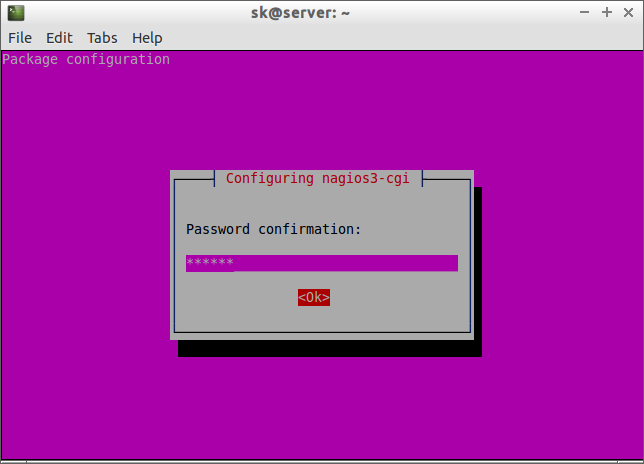

Enter the “nagiosadmin” password.

Re-enter the nagiosadmin password.

Configure Nagios

After nagios and nagios plugins installation, assign the permissions of www-data directory to nagios user, and set executable permission to the /var/lib/nagios3/ directory.

sudo usermod -a -G nagios www-data
sudo chmod -R +x /var/lib/nagios3/

By default, Nagios won’t check for external commands, just to be on the cautious side.  If you want to be able to use the CGI command interface, you will have to enable this.

To do that, edit file /etc/nagios3/nagios.cfg,

sudo nano /etc/nagios3/nagios.cfg

Find the line,

check_external_commands=0

And change it to:

check_external_commands=1

Save and close the file. Restart nagios service.

sudo /etc/init.d/nagios3 restart

Access Nagios Web console

Open up the web browser and point it to http://ip-address/nagios3. You’ll be asked to enter the username and password. Enter username as nagiosadmin and the password that you’ve created earlier.

This is how my Nagios web console looked.

Click on the Hosts section on the left pane to list of hosts being monitored.

If you want to see the complete details of a monitoring hosts, click on the respective monitoring hosts in the above window.

As you see in the above picture, the localhost(Nagios server) itself only is being monitored by default. We have to add the clients to monitor them now.

Add Monitoring targets

Now let us add some clients to monitor by Nagios server. To do that we have to install nrpe and nagios-plugins packages in our monitoring targets.

sudo apt-get install nagios-nrpe-server nagios-plugins

Configure Monitoring targets

Edit /etc/nagios/nrpe.cfg file,

sudo nano /etc/nagios/nrpe.cfg

Add your Nagios server ip address:

[...]
allowed_hosts=127.0.0.1 ,10.2.1.31
[...]

Start/Restart nrpe service as shown below.

sudo /etc/init.d/nagios-nrpe-server restart

Now, go back to your Nagios server to add the clients to be monitored through nagios server. By default, Debian based systems uses a configuration directory called /etc/nagios3/conf.d/ where nagios3-common, other packages and the local admin can dump or link all object configuration files into.

In the object configuration files, you can define hosts, host groups, contacts, contact groups, services, etc. You can split your object definitions across several config files if you wish, or keep them all in a single config file.

Ex:

cfg_file=/etc/nagios3/objects/commands.cfg
cfg_file=/etc/nagios3/objects/contacts.cfg
cfg_file=/etc/nagios3/objects/timeperiods.cfg
cfg_file=/etc/nagios3/objects/templates.cfg

Also, You can tell Nagios to process all config files (with a .cfg extension) in a particular directory by using the cfg_dir directive.

In this tutorial, I will tell Nagios to process client config files in a particular directory.

Edit /etc/nagios3/nagios.cfg file,

sudo nano /etc/nagios3/nagios.cfg

and uncomment the following line.

[...]
cfg_dir=/etc/nagios3/servers

Create a directory called servers under /etc/nagios3/ location.

sudo mkdir /etc/nagios3/servers

Create config file to the client to be monitored. In my case, I want to monitor my Ubuntu desktop which has IP address 10.2.1.30, and hostname as sk.

sudo nano /etc/nagios3/servers/clients.cfg

Add the following lines:

define host{

use                          generic-host

host_name                    sk

alias                        sk

address                      10.2.1.30

max_check_attempts           5

check_period                 24x7

notification_interval        30

notification_period          24x7

}

Save and close the file.

Here, sk is my Ubuntu 14.04 client host name, and 10.2.1.30 is the IP address of my client.

Restart nagios service.

sudo /etc/init.d/nagios3 restart

Now, open the nagios web console again in the browser and navigate to “Hosts” section in the left pane. You should see the newly added client will be visible there. Click on the host to see if there is anything wrong or alerts. Please note that you have to wait 90 seconds after any changes in your nagios server.

Click on the monitoring target, you’ll get the detailed output:

Like this way, you can define more clients by creating a separate config files /etc/nagios3/servers directory for each client.

Define services

We have defined the monitoring host before. Now let us add some services of the monitoring host. For example, to monitor the sshservice, add the following lines shown in red colour in the /etc/nagios3/servers/clients.cfg file.

sudo nano /etc/nagios3/servers/clients.cfg

Add the lines shown in red color:

define host{

use                          generic-host

host_name                    sk

alias                        sk

address                      192.168.1.100

max_check_attempts           5

check_period                 24x7

notification_interval        30

notification_period          24x7

}
define service {
    use                          generic-service
    host_name                    sk
    service_description          SSH
    check_command                check_ssh
    notifications_enabled        0
    }

Save and close the file. Restart Nagios.

sudo /etc/init.d/nagios3 restart

Now log in to Nagios web console and check for the added services. Navigate to Services section, you should see the ssh servicewill be available there.

To know more about object definitions such as Host definitions, service definitions, contact definitions and more please do visit here. This page will describe you the description and format of all nagios object definitions.

That’s it. Happy Monitoring with Nagios!
